Rotary type paint stripping and tin coating machine

Advantages and equipment features

1. Only one employee is required to complete it: paint stripping, cleaning, blow-drying, flux dipping, and tin application.

2. Paint removal and dipping tin are collected on one machine to improve efficiency, 10-35 seconds/tray (1-6 can be placed in a tray fixture, depending on the appearance of the product).

3. The machine has high efficiency compared with manual grinding, good product consistency, ultrasonic cleaning twice, and thorough cleaning.

Features:

1. The upper length descends the servo control height, fast speed and accurate positioning.

2. The touch screen can freely modify various parameters: paint stripping power, time setting, tin furnace height, turntable lifting, rotation and other parameter saving, one-click call and other functions.

3. Automatic supply of paint stripping stock solution.

4. The machine can be freely set: A. paint removal and tin or B. only paint removal and other functions.

5. Automatic water replenishment, automatic flux supplementation, and automatic detection of tin surface functions.

6. The clean water used for cleaning is circulating water; Optional PH value monitoring function (automatic monitoring of cleaning water PH value, over-standard alarm or shutdown function, etc.)

7. High-pressure air drying, hot air drying and other functions

Device parameters

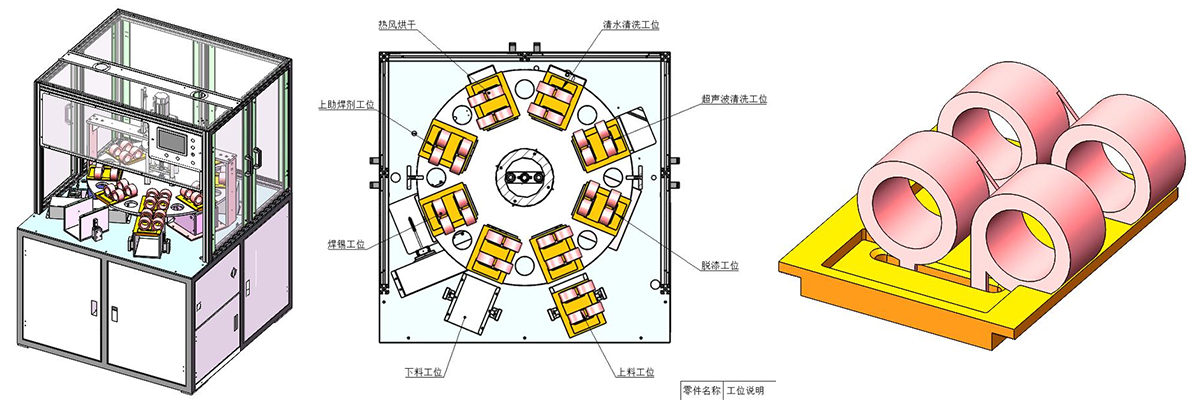

Equipment structure configuration

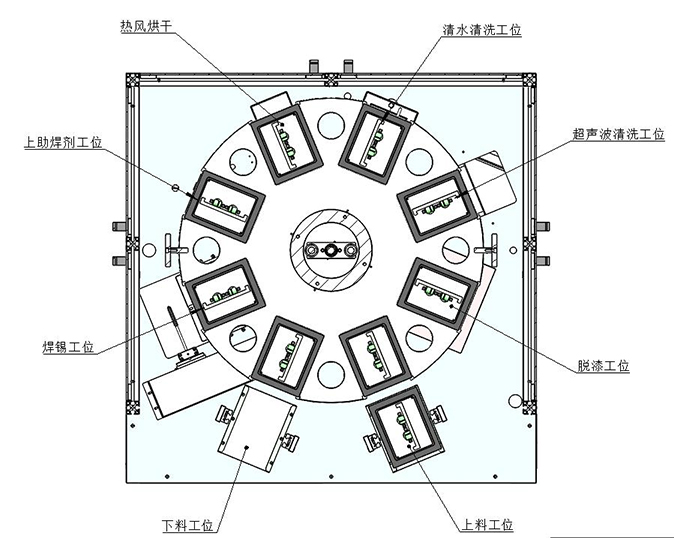

Workstations and layouts

Process description

Loading → Paint removal → Ultrasonic cleaning → Clean water cleaning → Hot air drying/drying → Immersion flux → Solder → Discharging
